Product Description:

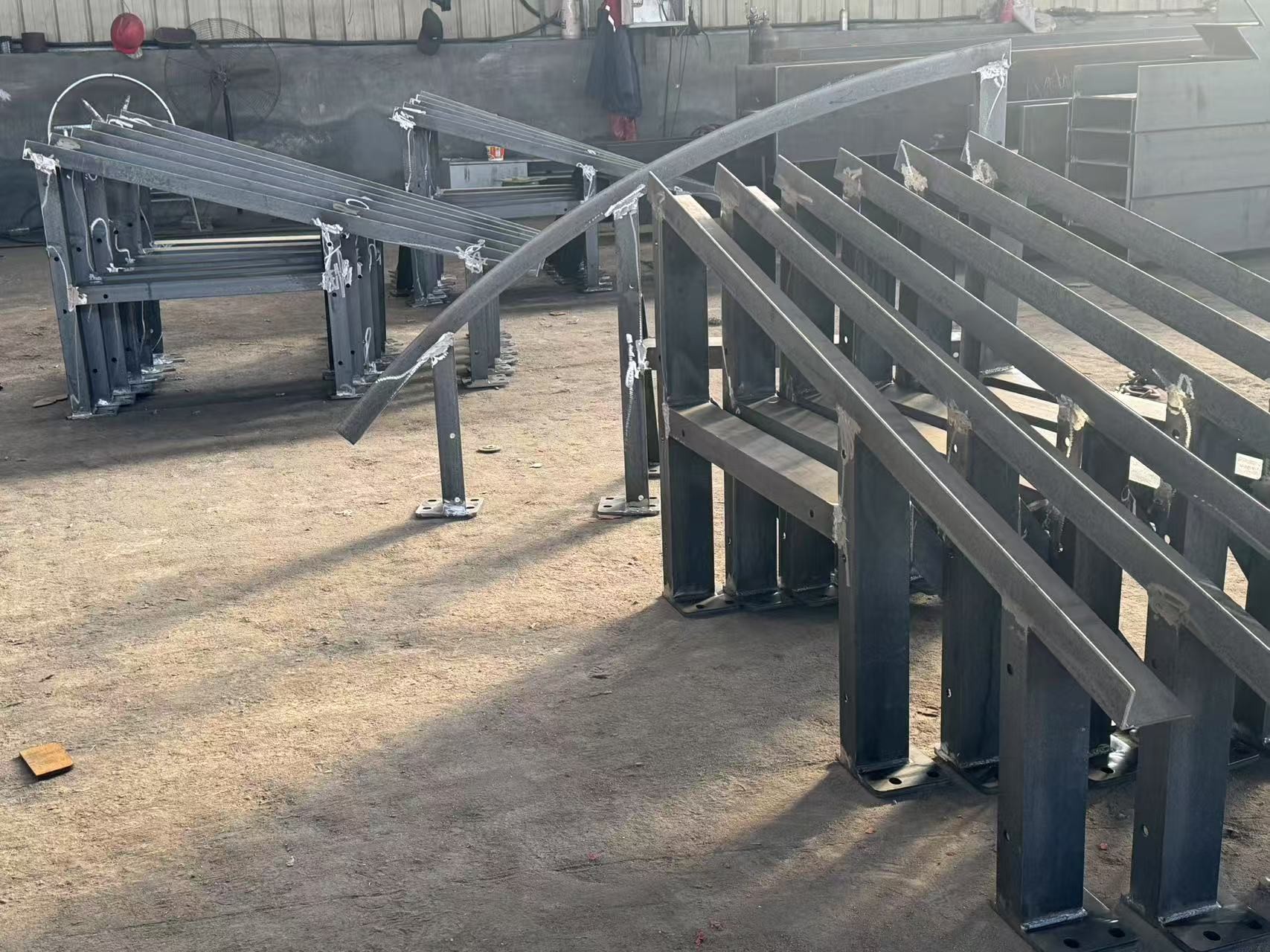

Our factory's wind tower base electrical cabinet steel support
platform is specially designed to withstand extreme environmental
conditions. It has a solid structure to ensure its integrity and
innovative design. The platform is made of high-grade galvanized
weathering steel with high strength and corrosion resistance. The
surface is hot-dip galvanized, which enables the steel structure
support platform designed by us to be used effectively for a long
time in harsh offshore and onshore wind farms. Our products are
prefabricated, easy to install and customize, providing stable
support for key electrical equipment while optimizing space
utilization. With its excellent load-bearing capacity, the platform
protects the electrical system from vibration and dynamic forces,
thereby improving the overall safety and efficiency of wind power
generation.In addition, it can accept highly customized services to
meet your various types of wind tower models and different cabinet
configuration requirements.
Applications:
1. Purpose & Industry Use
Our heavy-duty steel support platform is specifically designed to
securely mount and protect electrical cabinets, switchgear, and
control panels at the base of wind turbine towers. It serves as a
critical infrastructure component in onshore and offshore wind
farms, ensuring stable and organized housing for power distribution
systems, transformers, and communication equipment.
2. Key Applications
✅ Wind Energy Projects
Provides a stable foundation for electrical enclosures in wind
turbine towers and substations.
Supports equipment from leading brands (e.g., Siemens, ABB,
Schneider).
✅ Harsh Environment Protection
Engineered for coastal, desert, and cold climates with
corrosion-resistant galvanized steel.
Withstands high winds, salt spray, UV exposure, and extreme
temperatures (-30°C to +60°C).
✅ Safety & Maintenance Efficiency
Elevates cabinets for flood prevention and easy cable routing.
Optional anti-slip walkways and guardrails enhance worker safety
during maintenance.
✅ Renewable Energy Infrastructure
Compatible with wind farms, solar-storage hybrid systems, and
microgrids.
Facilitates compliance with IEC 61400, EN 1090, and OSHA standards.
Customization:
Tailored Design & Engineering
We provide fully customizable steel support platforms to meet your
wind farm's specific requirements. Our engineering team
collaborates with you to:
- Design platforms to exact cabinet dimensions (LxWxH)
- Adjust load capacity (XX kN/m² standard, higher available)
- Incorporate brand-specific mounting patterns (ABB/Siemens/Schneider
compatible)
- Optimize layouts for multi-cabinet arrays with integrated cable
management
Material & Protection Customization
Choose the ideal configuration for your environment:
▸ Material Options:
Standard: Hot-dip galvanized carbon steel (S355JR)
Coastal/Offshore: Marine-grade stainless steel (SS316)
Lightweight: Aluminum alloy (upon request)
▸ Surface Treatments:
Standard: 80μm hot-dip galvanization (ISO 1461)
Enhanced: Galvanization + RAL-color powder coating
Extreme Environments: Duplex coating systems
Special Feature Add-Ons
Enhance functionality with:
✓ Integrated cable trays or conduit cutouts
✓ Lightning protection grounding points
✓ Lifting lugs for easy transport/installation
✓ Safety accessories: Non-slip treads, OSHA-compliant guardrails
✓ Drainage solutions: Sloped surfaces or weep holes
Certification & Compliance
All custom platforms include:
• EN 1090-1/2 CE certification (Execution Class 1-4 available)
• ISO 9001 quality management documentation
• Wind load calculations per IEC 61400-2/ASCE 7-10
• Optional third-party inspection reports (DNV-GL/BV/SGS)
Support and Services:
Customized Solution Design: We tailor personalized solutions
considering your specific needs, such as wind tower type,
electrical cabinet size, and usage environment. Our engineers
ensure the scientific and feasible design of the solution.
Production Tracking: We keep you updated on the production progress
regularly. You can know the status of your order at any time.
Quality Control: We strictly follow international and industry
standards to ensure product quality, from raw material inspection
to final product testing.
Logistics Coordination: We choose the most suitable transportation
method for you and coordinate all logistics matters to ensure
timely and safe delivery.
Installation Guidance: Our technicians provide professional
installation guidance online or offline.
Maintenance and Repair: Once quality issues or malfunctions occur,
we respond promptly and arrange repairs. We also offer regular
maintenance advice.
Packing and Shipping:
Product Packaging:
Our wind tower electrical cabinet support platform steel structure
is carefully packaged to ensure its integrity during
transportation. All small parts and accessories are packed in
individual, labeled boxes and secured inside wooden crates.
Shipping:
We offer flexible shipping options, including sea and land
transportation, depending on your requirements and urgency. For sea
transportation, we work with reliable shipping companies to ensure
timely and cost-effective delivery. We also provide real-time
tracking information, allowing you to monitor the progress of your
shipment from our factory to its destination.
